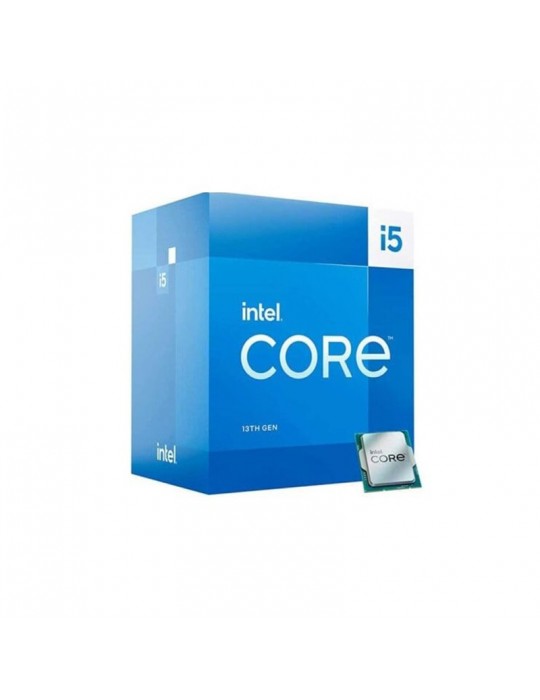

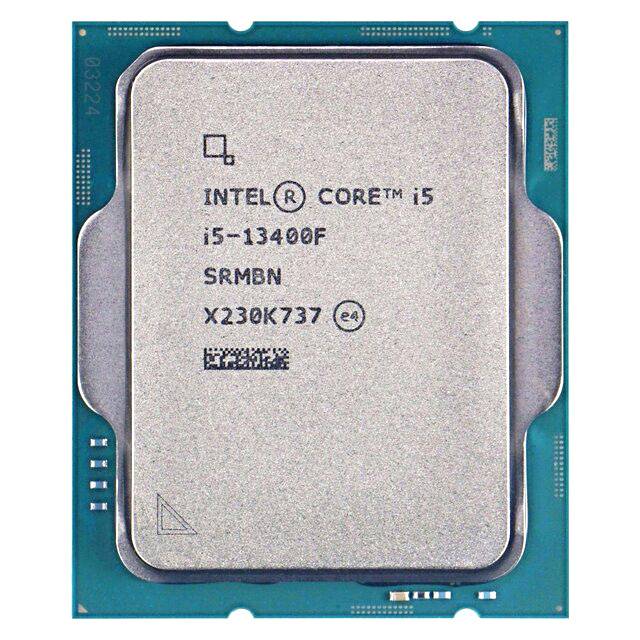

Intel Core i5 13400F TRY

• Product Collection : 13th Generation Intel® Core™ i5
• Code Name : Products formerly Raptor Lake
• Vertical Segment : Desktop
• Processor Number : i5-13400F
• Lithography : Intel 7

CPU Specifications

• Total Cores : 10
• # of Performance-cores : 6
• # of Efficient-cores : 4
• Total Threads : 16
• Max Turbo Frequency : 4.60 GHz
• Performance-core Max Turbo Frequency : 4.60 GHz
• Efficient-core Max Turbo Frequency : 3.30 GHz
• Performance-core Base Frequency : 2.50 GHz
• Efficient-core Base Frequency : 1.80 GHz
• Cache : 20 MB Intel® Smart Cache
• Total L2 Cache : 9.5 MB
• Processor Base Power : 65 W
• Maximum Turbo Power : 148 W

Memory Specifications

• Max Memory Size (dependent on memory type) : 128 GB
• Memory Types : Up to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels : 2
• Max Memory Bandwidth : 76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision : 4.0
• Max # of DMI Lanes : 8
• Scalability1S Only
• PCI Express Revision5.0 and 4.0
• PCI Express Configurations : Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes : 20

Package Specifications

• Sockets Supported : FCLGA1700
• Max CPU Configuration : 1
• Thermal Solution SpecificationPCG 2020C
• TJUNCTION : 100°C
• Package Size : 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator : 3.0
• Intel® Thread Director : Yes
• Intel® Deep Learning Boost (Intel® DL Boost) : Yes
• Intel® Speed Shift Technology : Yes
• Intel® Turbo Boost Max Technology 3.0 : No
• Intel® Turbo Boost Technology : 2.0
• Intel® Hyper-Threading Technology : Yes
• Intel® 64 : Yes
• Instruction Set : 64-bit
• Instruction Set ExtensionsIntel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States : Yes
• Enhanced Intel SpeedStep® Technology : Yes
• Thermal Monitoring Technologies : Yes
• Intel® Volume Management Device (VMD) : Yes

Security & Reliability

• Intel® Standard Manageability (ISM) : Yes
• Intel® Control-Flow Enforcement Technology : Yes
• Intel® AES New Instructions : Yes
• Secure Key : Yes
• Intel® OS Guard : Yes
• Execute Disable Bit : Yes
• Intel® Boot GuardYes
• Mode-based Execute Control (MBEC) : Yes
• Intel® Virtualization Technology (VT-x) : Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel® VT-x with Extended Page Tables (EPT) : Yes
