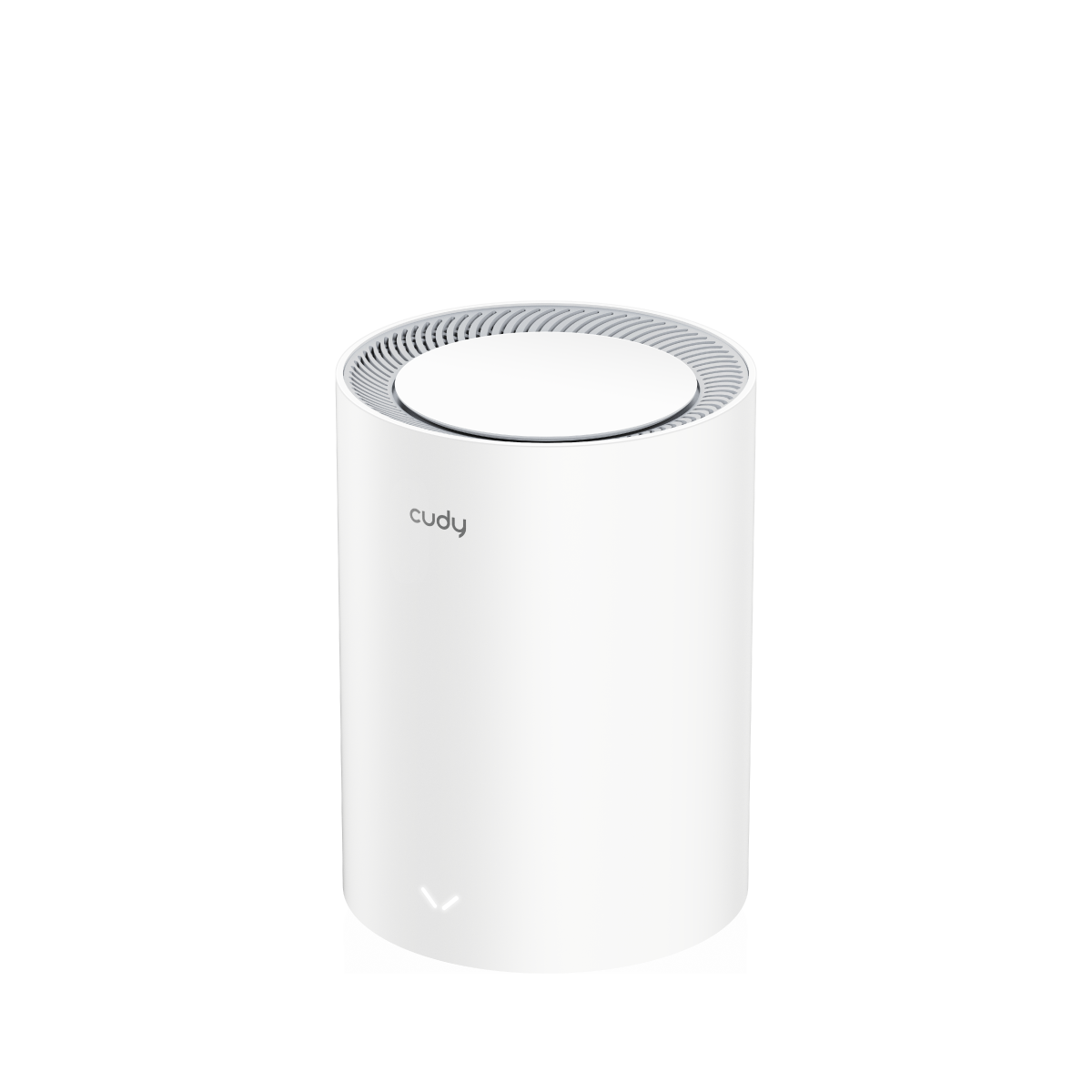

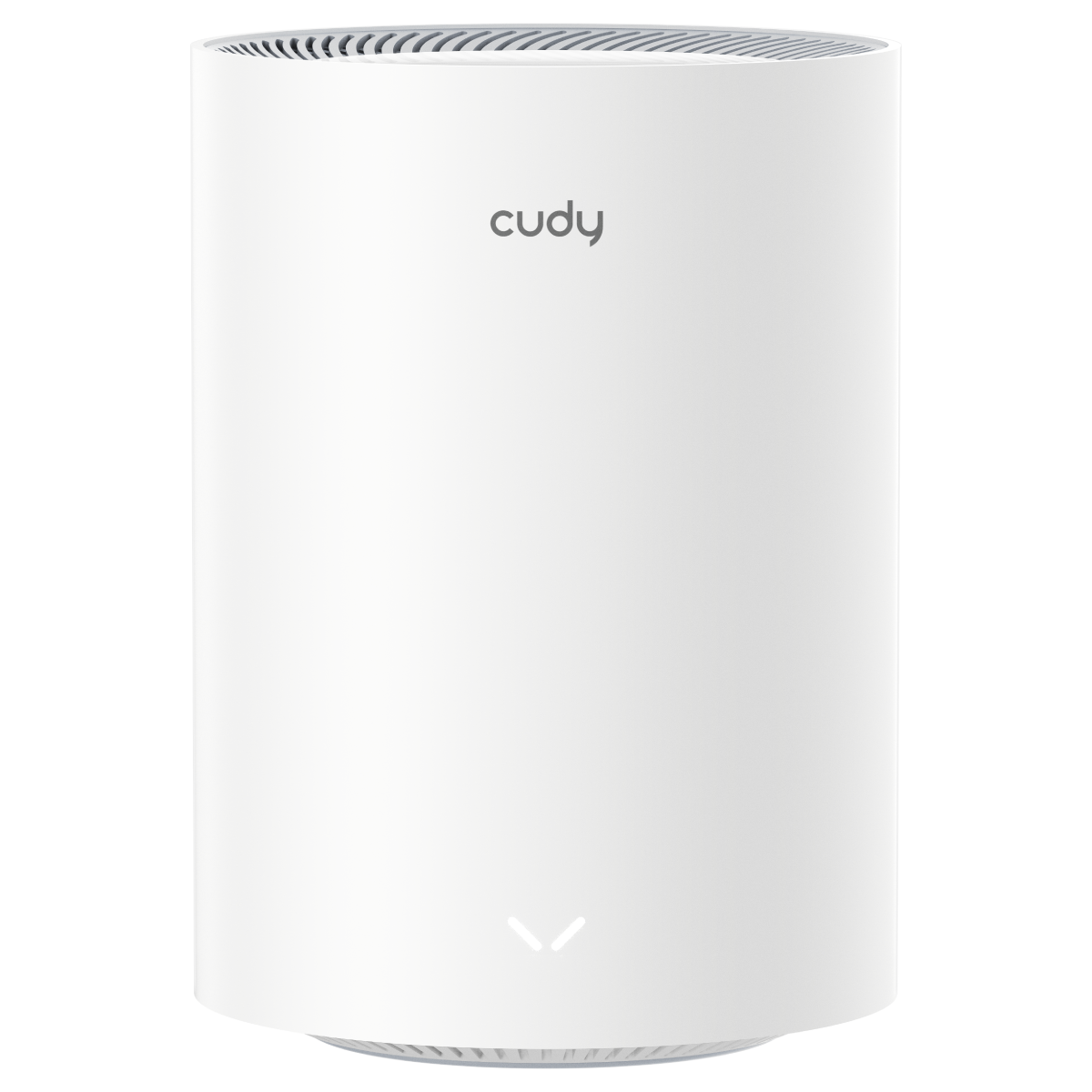

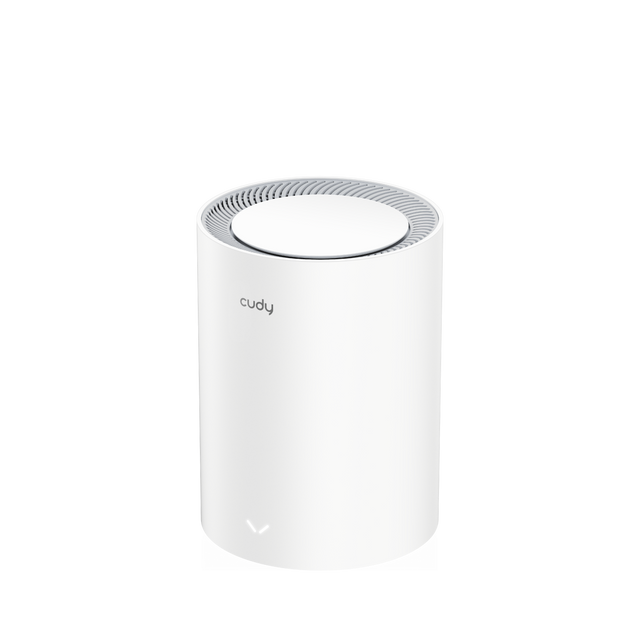

BE3600 Gigabit Mesh Wi-Fi 7 System M3600

160,000 IQD
Pack

الضمان

ضمان كل قطعة يختلف حسب نوعها، وقطع الحاسبات نضمنها إلك لسنة كاملة

التسليم والشحن

وين ما تكون.. نوصلّك! داخل البصرة بـ 24 ساعة، وباقي المحافظات خلال 3 أيام

AL-EMAN MARKET

For computers and communications networks

Model Version M3600 1.0
CPU CPU Details 2.0 GHz Quad-Core, ARM Cortex-A7
Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND
DDR/RAM 512 MB (4 Gbit) DDR3L
Wireless 5 GHz Wi-Fi Speed 2882 Mbps
2.4 GHz Wi-Fi Speed 688 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 4× Internal
FEM or PA/LNA
  • 5 GHz: 2× External
  • 2.4 GHz: 2× Internal
Beamforming
Range Performance Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference 2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.

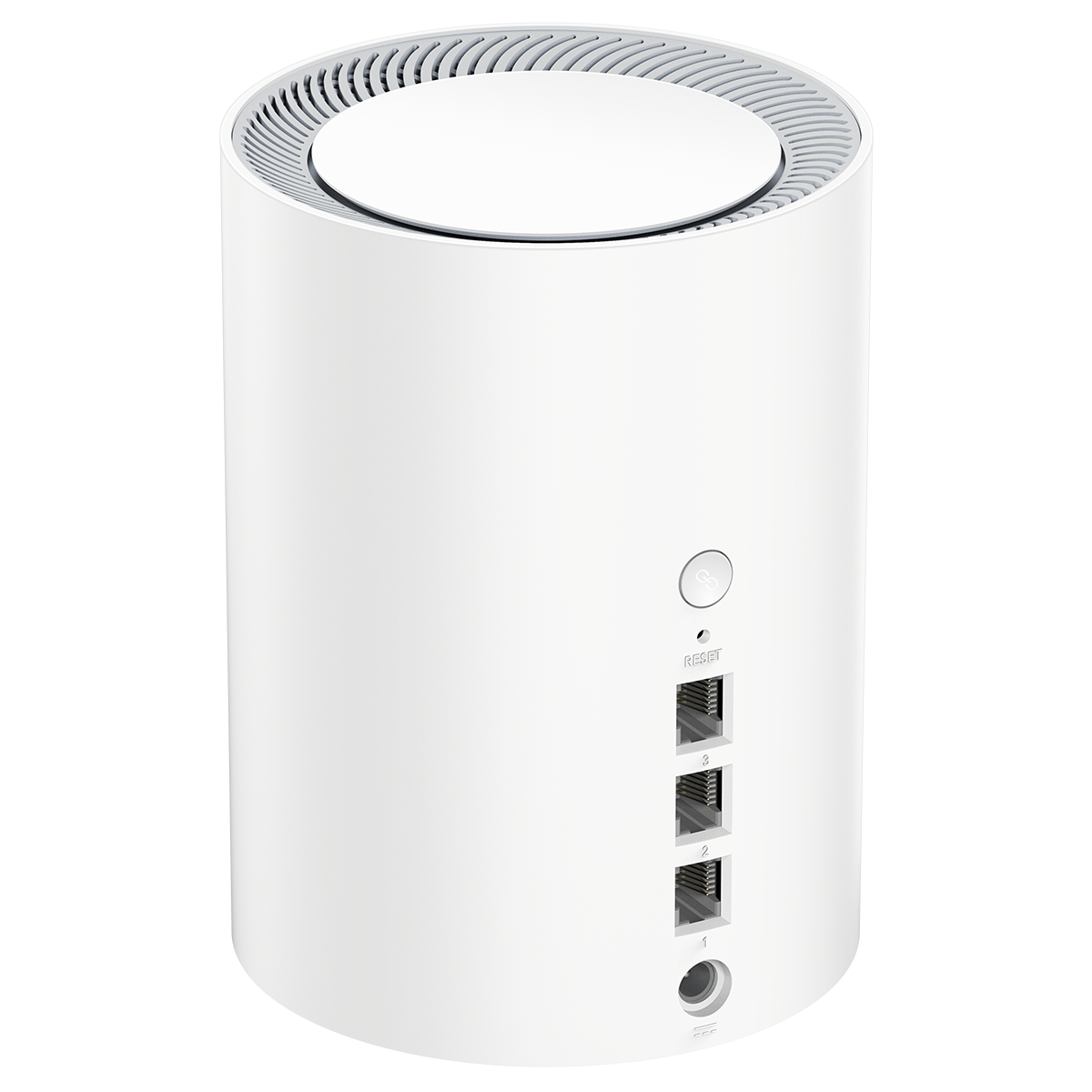

Interfaces Gigabit RJ45 Ports 3
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Power Input Type DC Jack
Power Methods DC
Power Input 12V⎓1A
Power Adapter In the Box Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W) 9W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight 357.6 g (12.61 oz.)

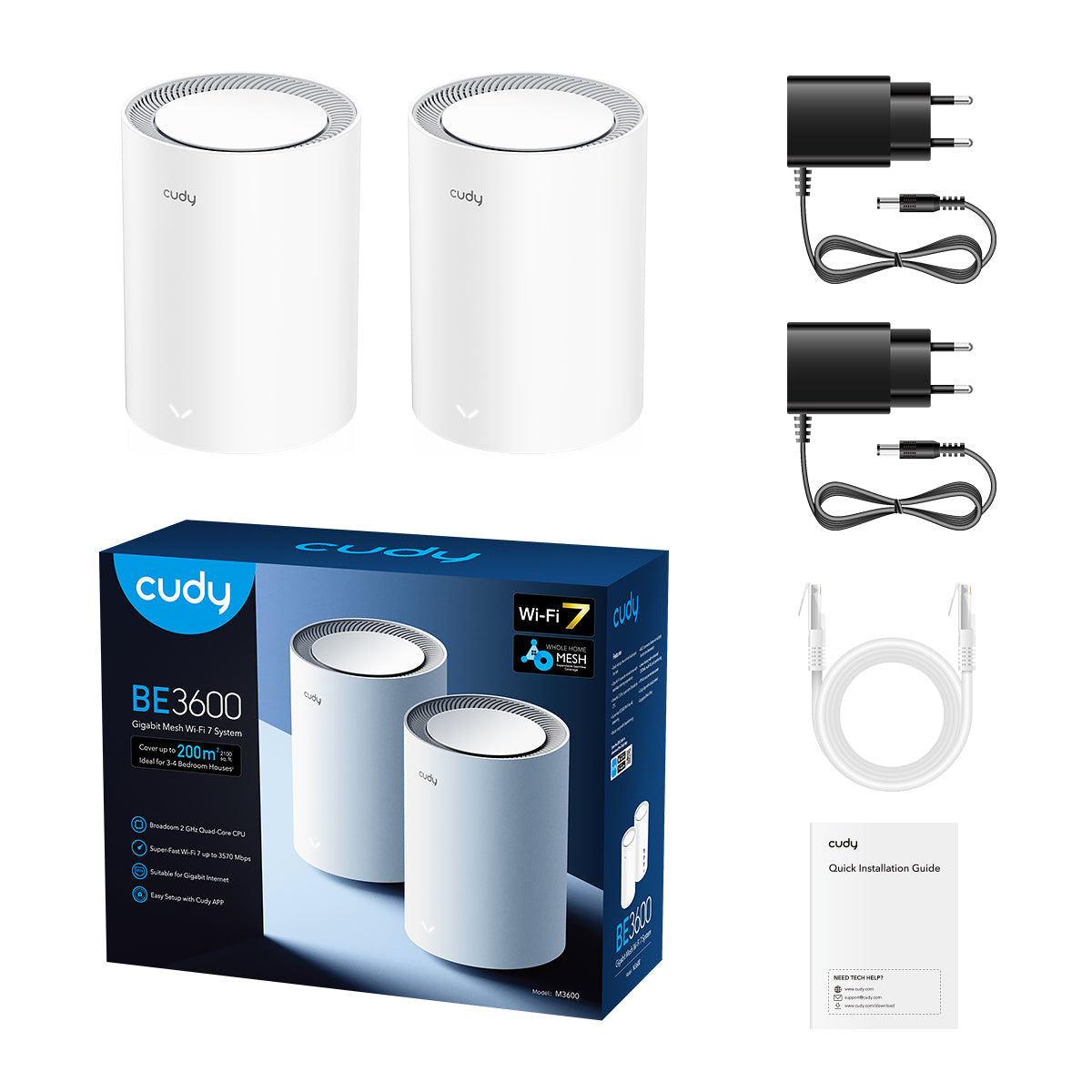

Package Content
  • M3600
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • 2-Pack | EU: 1371.3 g (48.37 oz.)
  • 3-Pack | EU: 1847.5 g (65.17 oz.)
  • 1-Pack | EU: 731.3 g (25.8 oz.)
Retail Package Dimension
  • 1-Pack:
    145×130×265 mm
    5.71×5.12×10.43 inches
  • 2-Pack:
    330×130×265 mm
    12.99×5.12×10.43 inches
  • 3-Pack:
    380×130×265 mm
    14.96×5.12×10.43 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
  • 3-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
Carton Gross Weight
  • 2-Pack | EU: 12.3 kg (27.12 lbs)
  • 3-Pack | EU: 8.3 kg (18.3 lbs)
  • 1-Pack | EU: 13.0 kg (28.66 lbs)
Carton Net Weight
  • 2-Pack | EU: 11.0 kg (24.25 lbs)
  • 3-Pack | EU: 7.4 kg (16.31 lbs)
  • 1-Pack | EU: 11.7 kg (25.79 lbs)
