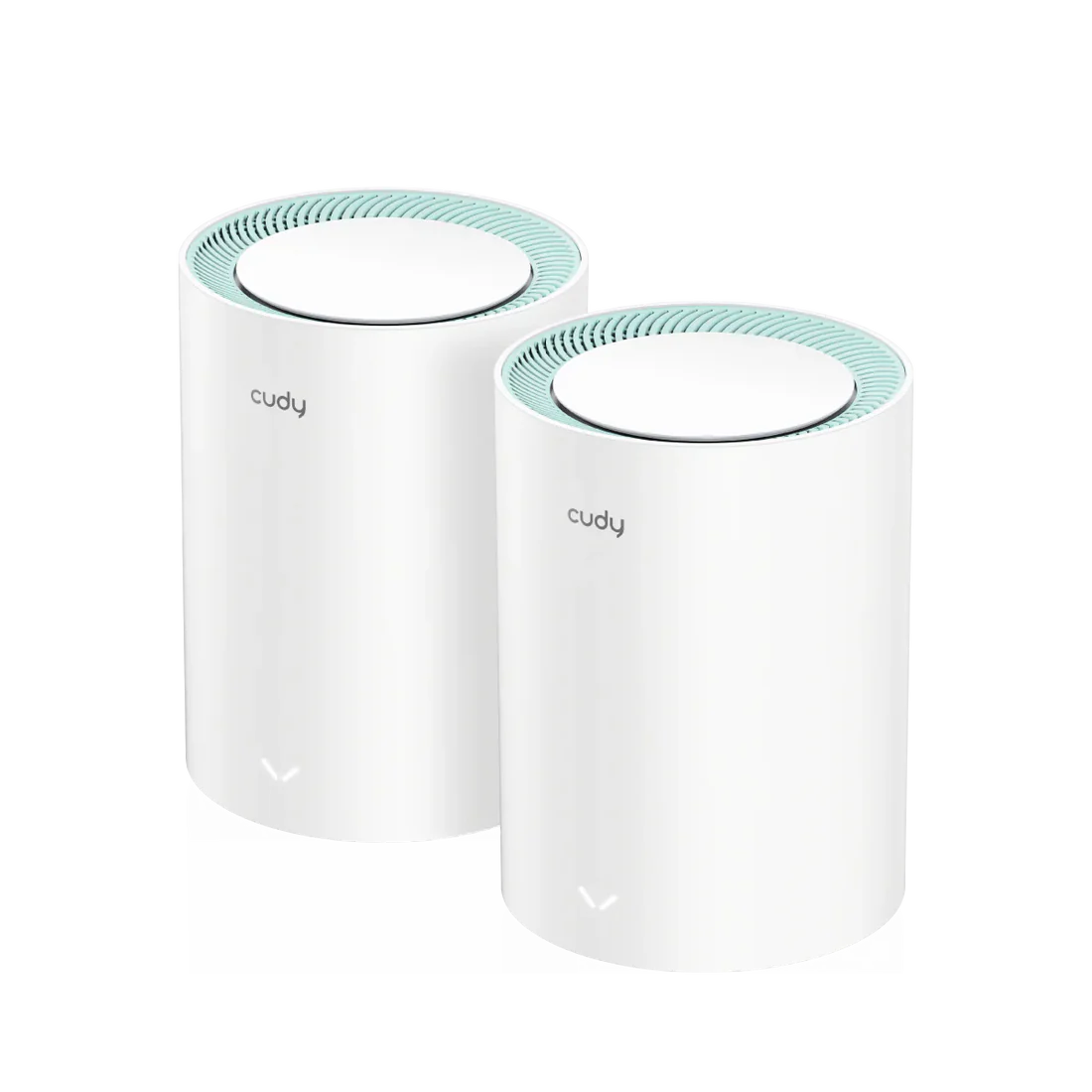

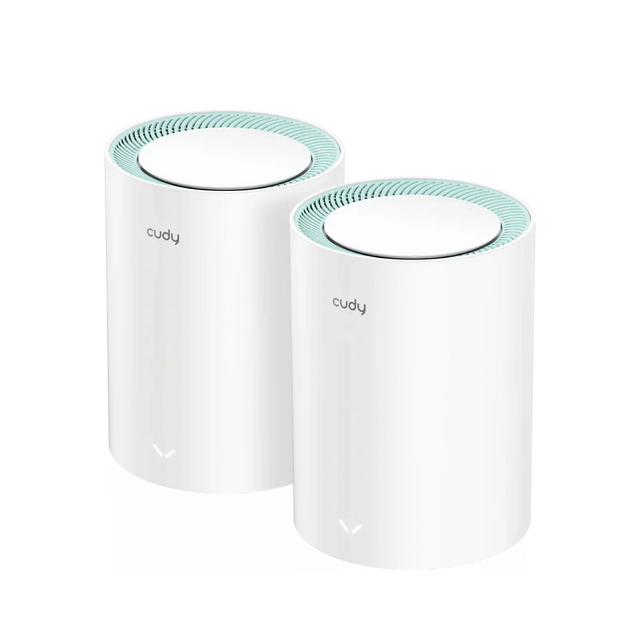

AX1500 Gigabit Mesh Wi-Fi 6 System M1500 2PACK

90,000 IQD

الضمان

ضمان كل قطعة يختلف حسب نوعها، وقطع الحاسبات نضمنها إلك لسنة كاملة

التسليم والشحن

وين ما تكون.. نوصلّك! داخل البصرة بـ 24 ساعة، وباقي المحافظات خلال 3 أيام

AL-EMAN MARKET

For computers and communications networks

Model Version M1500 1.0
CPU CPU Details 1 GHz Single-Core CPU
Memory/Storage Flash/ROM 16 MB (128 Mbit) NOR
DDR/RAM 128 MB (1 Gbit) DDR3
Wireless 5 GHz Wi-Fi Speed 1201 Mbps
2.4 GHz Wi-Fi Speed 300 Mbps
5 GHz Wi-Fi Streams 2 Spatial Streams
2.4 GHz Wi-Fi Streams 2 Spatial Streams
Wi-Fi Antennas 2× Internal
FEM or PA/LNA
  • 5 GHz: 2× Internal
  • 2.4 GHz: 2× Internal
Beamforming True
Range Performance Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'')
Indoor Coverage Reference 2 Pack: 170 m² (1800 sq ft)
3 Pack: 230 m² (2500 sq ft)
Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room.
Interfaces Gigabit RJ45 Ports 3
Ethernet Notes 1× WAN port, the rest are LAN ports
LED
  • System
  • Speed/Link/ACT of Ethernet Port
Physical Buttons
  • WPS Button
  • Reset Button
Power Interfaces DC Jack
Power Power Methods DC
Power Input 12V⎓1A
Power Adapter Note Input: 100-240V~, 50/60Hz
Output: 12V⎓1A
Max Power Consumption (W) 10W
Reliability Environment
  • Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
  • Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)
  • Humidity: 10% ~ 90% non-condensing
  • Storage Humidity: 5% ~ 95% non-condensing
Certifications FCC, CE
Mechanical Installation Desktop
Dimension Φ110×154.5 mm
Φ4.33×6.08 inches
Product Weight 299.1 g (10.55 oz.)

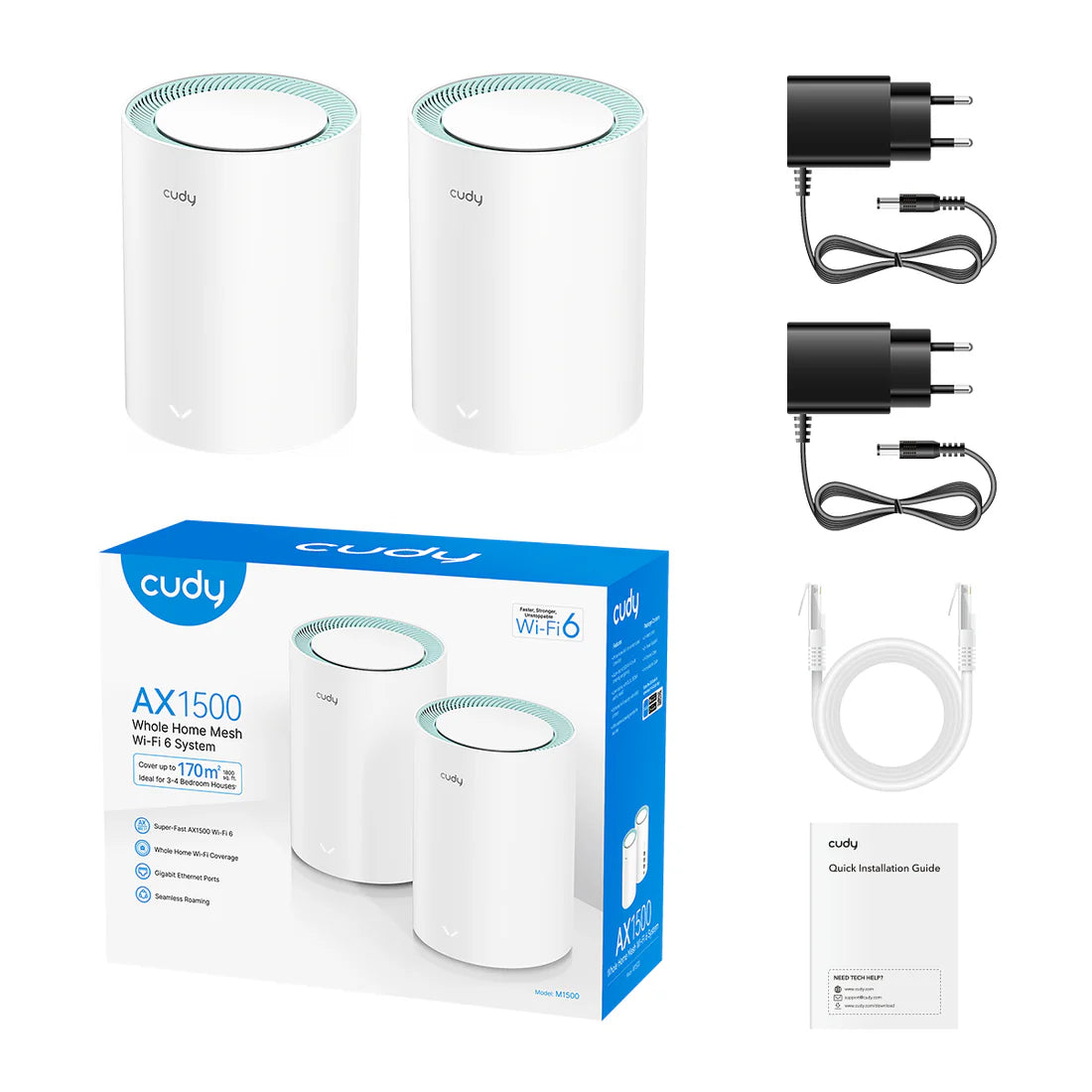

Package Content
  • M1500
  • Power Adapter
  • Ethernet Cable
  • Installation Guide
Ordering Information Retail Package Weight
  • 1-Pack | EU: 677.0 g (23.88 oz.)
  • 2-Pack | EU: 1241.3 g (43.79 oz.)
  • 3-Pack | EU: 1676.0 g (59.12 oz.)
Retail Package Dimension 1-Pack:
145×130×265 mm
5.71×5.12×10.43 inches,2-Pack:
330×130×265 mm
12.99×5.12×10.43 inches,3-Pack:
380×130×265 mm
14.96×5.12×10.43 inches
Units per Carton
  • 1-Pack: 16
  • 2-Pack: 8
  • 3-Pack: 4
Carton Dimension
  • 1-Pack: 57×56×26 cm
    22.44×22.05×10.24 inches
  • 2-Pack: 55×54.5×35.3 cm
    21.65×21.46×13.9 inches
  • 3-Pack: 53.6×40×28.7 cm
    21.1×15.75×11.3 inches
Carton Gross Weight
  • 1-Pack | EU: 12.1 kg (26.68 lbs)
  • 2-Pack | EU: 11.2 kg (24.69 lbs)
  • 3-Pack | EU: 7.6 kg (16.76 lbs)
Carton Net Weight
  • 1-Pack | EU: 10.8 kg (23.81 lbs)
  • 2-Pack | EU: 9.9 kg (21.83 lbs)
  • 3-Pack | EU: 6.7 kg (14.77 lbs)
