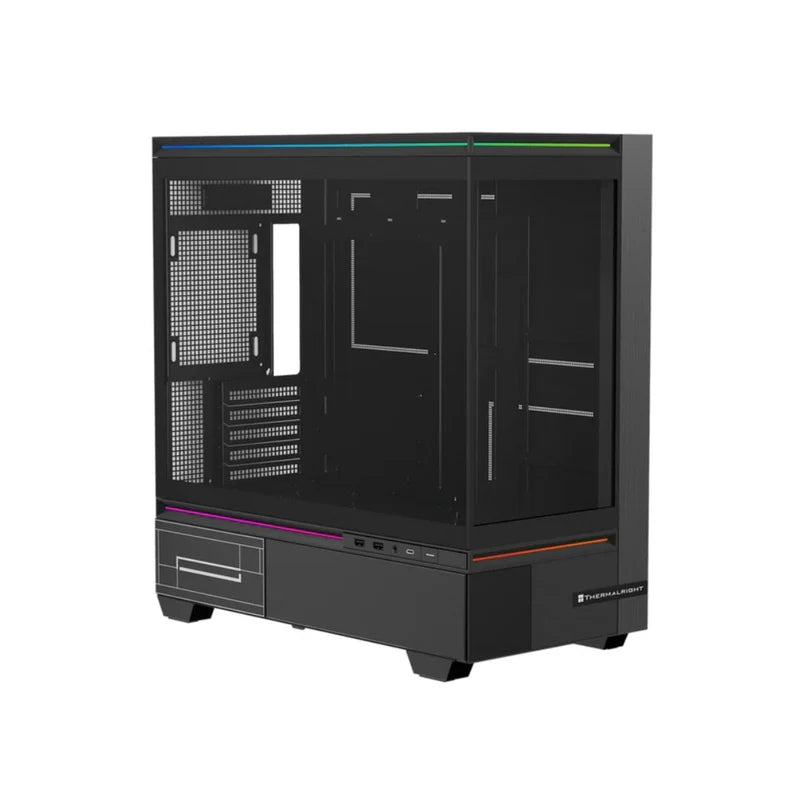

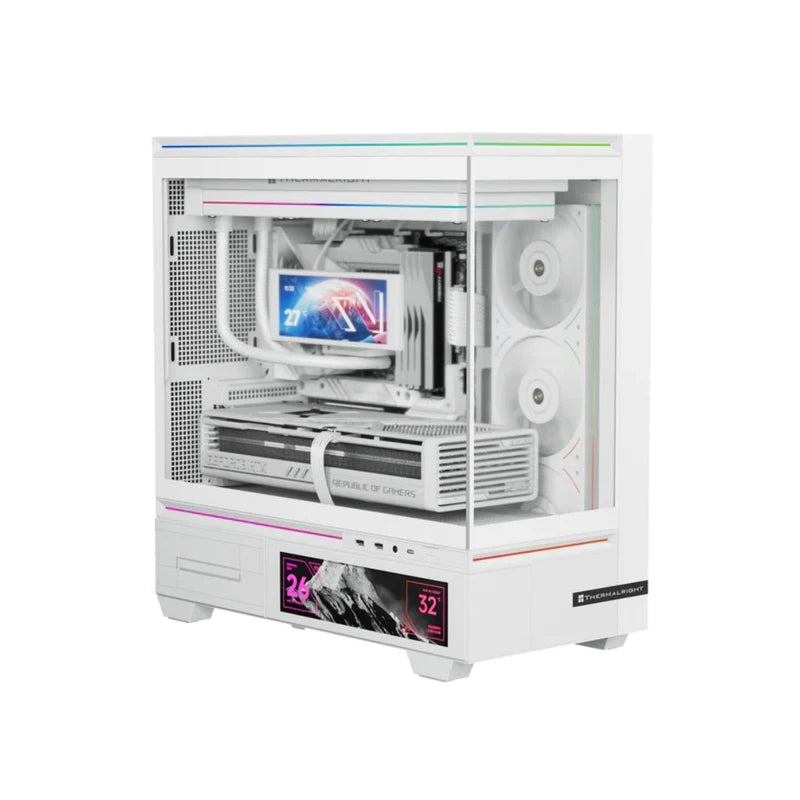

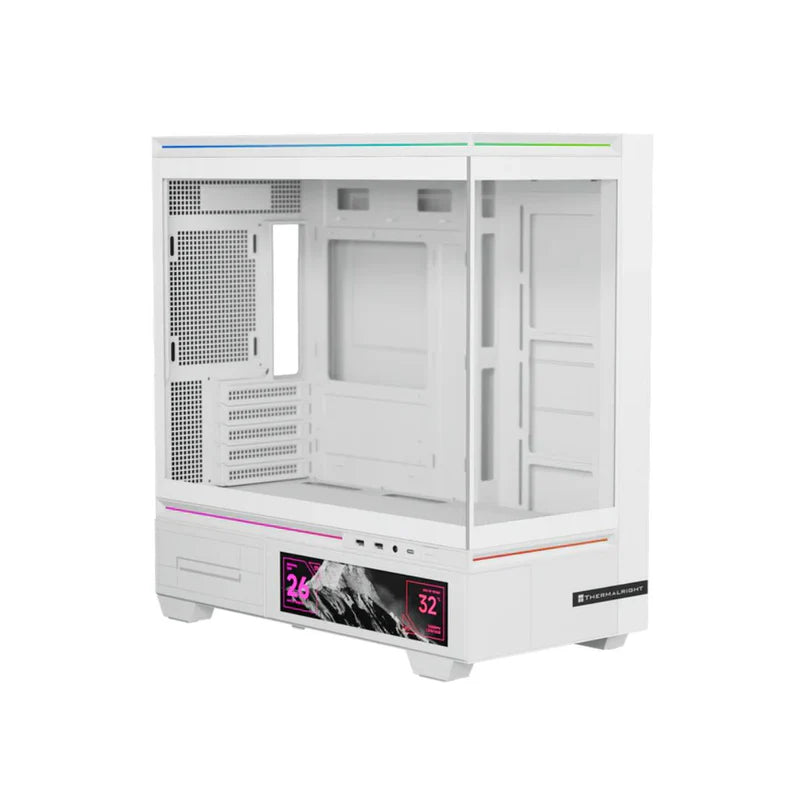

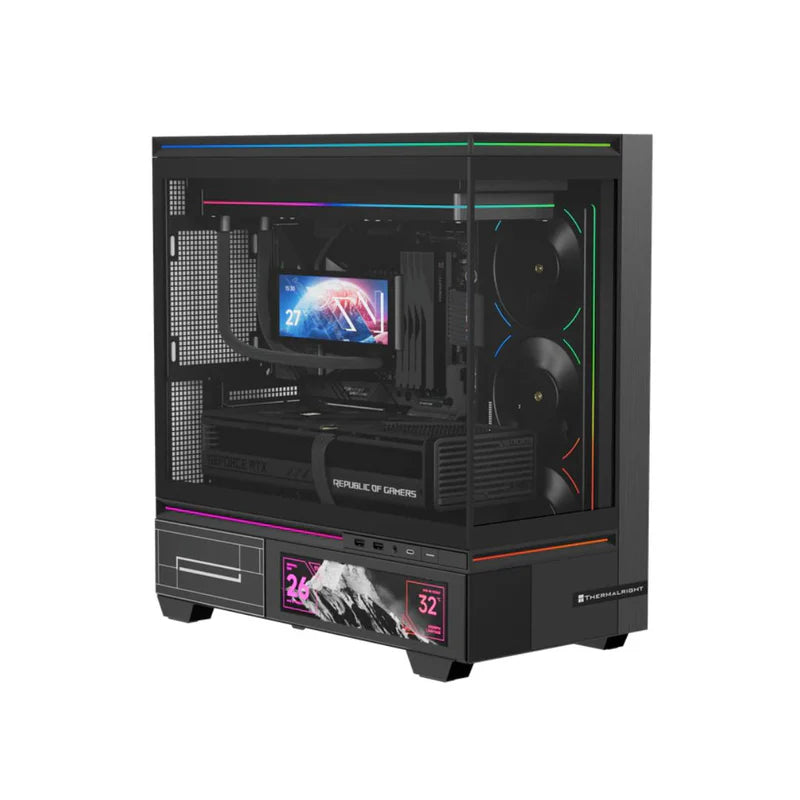

Thermalright M-ATX TL-M10 VISION

General

• Product Name: Thermalright TL‑M10 VISION
• Type: Micro‑ATX Compact Tower Case
• Color: Black WHITE
• Materials: ABS + SPCC Steel + Tempered Glass

Compatibility

• Motherboard Support: ITX, Micro‑ATX
• Expansion Slots: 5
• Drive Bays: 2 × 3.5″ HDD, 1 × 2.5″ SSD

Cooling & Airflow

• Fan Support: Side 3 × 120 mm / Top 3 × 120 mm or 2 × 140 mm / PSU Shroud 3 × 120 mm / Rear 1 × 120 mm
• Radiator Support: Top 120 / 140 / 240 / 280 / 360 mm / Rear 120 mm
• Pre‑installed Fans: None

Component Clearance

• CPU Cooler Height: Up to 185 mm
• GPU Length: Up to 360 mm
• PSU Type: ATX

Hardware

• Front Panel: Aluminum minimalist design
• Side Panel: Tempered glass showcase
• Cable Management: Dual‑chamber layout
• I/O Ports: 2 × USB 3.0, 1 × USB Type‑C, Audio/Mic combo, Power & Reset buttons
• RGB Support: 3‑pin / 5 V Addressable RGB

Technical Specifications

• Dimensions: 476 × 230 × 450 mm
• Weight: 6.3 kg

Package Contents

• TL‑M10 VISION Case Unit × 1
• Accessory Pack × 1
• User Manual × 1
