AL-Eman Market | SKU:

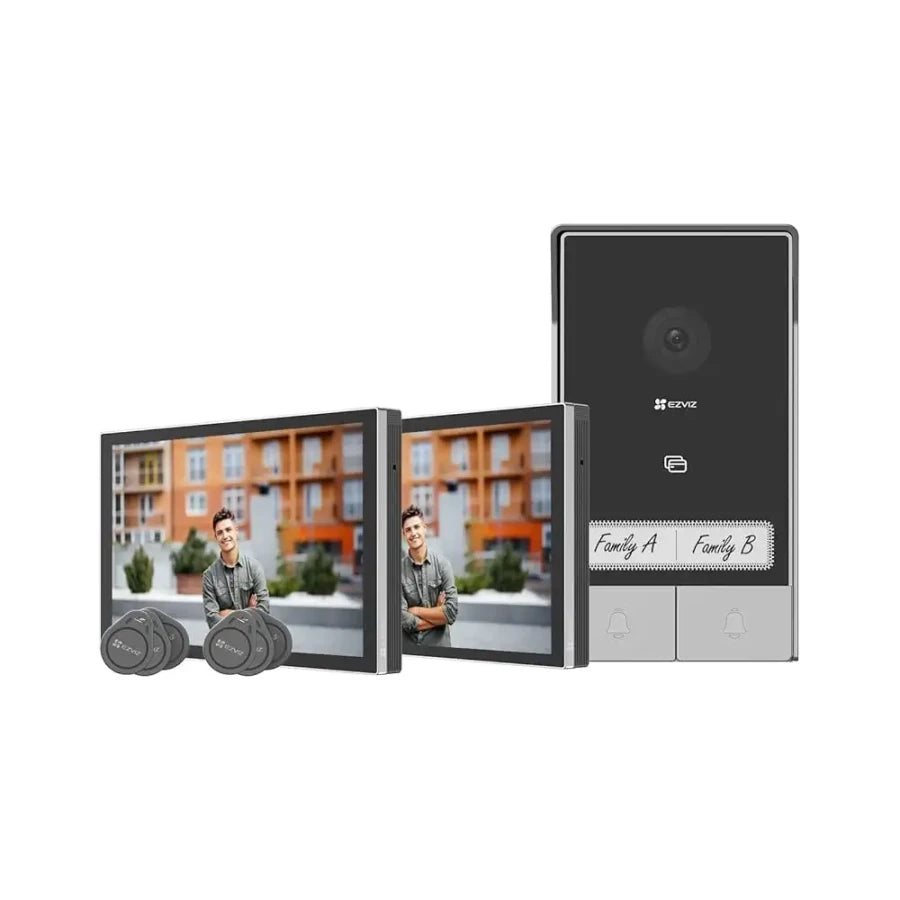

EZVIZ HP7 2-Family Kit 2K Video Doorphone System EZVIZ HP7 2-Family Kit 2K Video Doorphone System
350,000 IQD
Unit price
/
Unavailable
EZVIZ HP7 2-Family Kit 2K Video Doorphone System EZVIZ HP7 2-Family Kit 2K Video Doorphone System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
الضمان
الضمان
ضمان كل قطعة يختلف حسب نوعها، وقطع الحاسبات نضمنها إلك لسنة كاملة
التسليم والشحن
التسليم والشحن
وين ما تكون.. نوصلّك! داخل البصرة بـ 24 ساعة، وباقي المحافظات خلال 3 أيام
EZVIZ HP7 2-Family Kit 2K Video Doorphone System EZVIZ HP7 2-Family...
350,000 IQD
Unit price
/
Unavailable
AL-EMAN MARKET
For computers and communications networks
HP7 2-Family Kit
One unified smart entrance system for double convenience
Specifications
| Specifications | |
|---|---|
| Model | CS-HP7-R100-1W2TFC |
| Outdoor Doorbell | |
| Image Sensor | 1/2.7" Progressive Scan CMOS (Supports low light sensitivity) |
| Lens | 2.0 mm @ F2.2,viewing angle: 162° (Diagonal) |
| Day & Night | IR-cut filter with auto-switching, 850 nm infrared light × 2 (max. 6m) |
| Max. Resolution | 2K (2048 × 1296) |
| DNR | 2D / 3D DNR |
| Video Compression | H.265 / H.264 |
| Frame Rate | Max: 15fps; Self-Adaptive during network transmission |
| Outdoor Panel Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Doorbell Button | Supports 2 buttons; Can set the light on or off |
| Name Card | Supports handwritten; 3 cards stickers included (1 sticker already on the intercom panel) |
| Terminal | Two wiring ports to connect screen. Two wiring ports to connect gate. Two wiring ports to connect electric strike plate. |
| Functions | |
| Intelligent Alarm | Smart human motion detection, Lingering Detection |
| Tamper Alarm | Supports |
| Video Intercom | Long-distance video two-way talk |
| Connection and Function | |
| Connection Method | Wired connection (2-Wired, capable with 4-Wired), Digital signal transmission |
| Transmission Distance | Φ 2 x 0.75 mm2: max.50 m Φ 2 x 1.5 mm2: max.100 m Twisted pair: max.120 m |
| Video Intercom | Long-distance video two-way talk |
| Open the door (Gate) | Supports 2 wiring ports; 1 - 10 m distance The intercom panel provides a “dry”-contact connection, without an electric current, to connect to the button for automated gate, gate breaking capacity: 12V / 2A |
| Unlock (Electric Strike Plate) | Supports 2 wiring ports; 1 - 10 m distance The electric strike plate or lock that you order must have a mechanical memory; the power supply to the electric strike plate or lock must not exceed 12V / 1.1A, other wise should do as user manual |
| Door Open Methods | 1. RFID badge unlock (3 pcs / family) 2. App remote unlock 3. Indoor monitor unlock 4. QR code unlock |
| General (Outdoor Panel) | |
| Operation Conditions | -30°C to 60°C, Humidity 95% or less (non-condensing) |
| IP Grade | Waterproof, with shield cover |
| Power Supply | 24V DC from screen |
| Indoor Monitors | |
| Display Size | 7” touch screen |
| Resolution | 1024 × 600 |
| Interface | |
| Audio Input | Built-in high-sensitivity microphone |
| Audio Output | Built-in high-power speaker |
| Button | Screen on / off button |
| Terminal | Two wiring ports to connect the outdoor panel |
| MicroSD Card | Supports microSD card (max. 512 GB) |
| Network Parameters | |
| Protocol | EZVIZ Cloud Proprietary Protocol |
| Interface Protocol | EZVIZ Cloud Proprietary Protocol |
| Wi-Fi Parameters | |
| Wi-Fi Standard | IEEE802.11b, 802.11g, 802.11n, 802.11ac |
| Frequency Range | 2.4GHz ~ 2.4835GHz 5.15GHz ~ 5.25GHz |
| Channel Bandwidth | Supports 20MHz |
| Security | 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps, 11ac: 433.3Mbps |
| Function | |
| Multiple ringtones | Up to 20 ringtones |
| Functions | Live view, playback, two-way talk, video call |
| General (Indoor Monitor) | |
| Operation Conditions | -10°C to 45°C, Humidity 95% or less (non-condensing) |
| Power Supply | DC 24V / 1A power supply, adaptor (100- 240Vac) |
| Power Consumption | 8W, Max. 24W |
| General (HP7 2-Family Kit) | |
| Weight | Net weight: 1010 g (35.63 oz) |
| Size | Screens: 180 × 111 × 15 mm (7.09 × 4.37 × 0.59 inch) Outdoor Panel: 161 × 87 × 22 mm (6.34 × 3.43 × 0.87 inch) |
| In the box | |
| In the box | Monitor × 2 |
| - Wall Bracket for Monitor × 2 | |
| - Power Adapter for Monitor × 2 | |
| - Drill Template for Monitor × 2 | |
| - Intercom Panel (Doorbell) with a Weather-proof Shield | |
| - Drill Template for Intercom Panel | |
| - Screwdriver | |
| - Badges × 6 | |
| - Screw Kit × 3 | |
| - Name Card × 2 | |
| - Wires and Wire Connectors × 2 | |
| - DC 24V Power Supply Jack Connector Cable × 2 | |
| - Regulatory Information × 2 | |
| - Quick Start Guide × 2 | |
| Certifications | |
| Certifications | CE / REACH / WEEE / RoHS |
