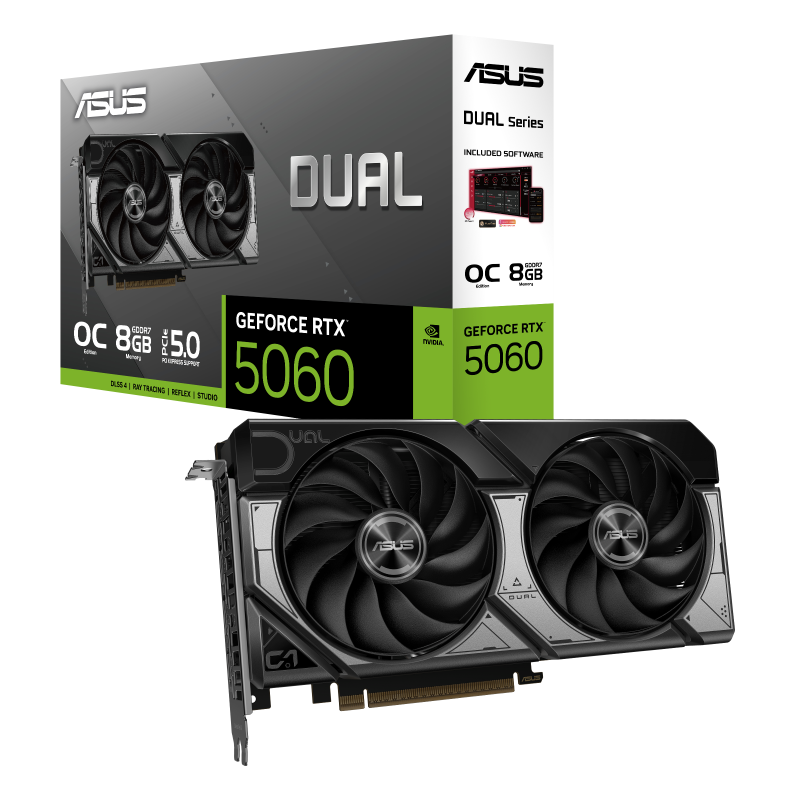

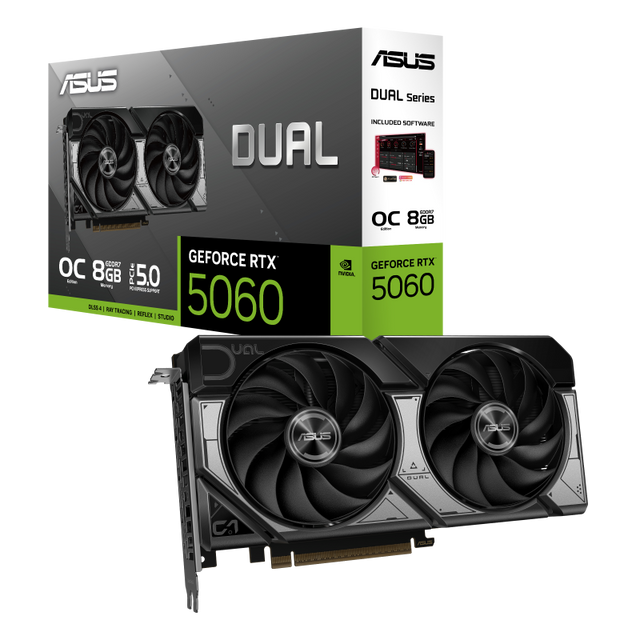

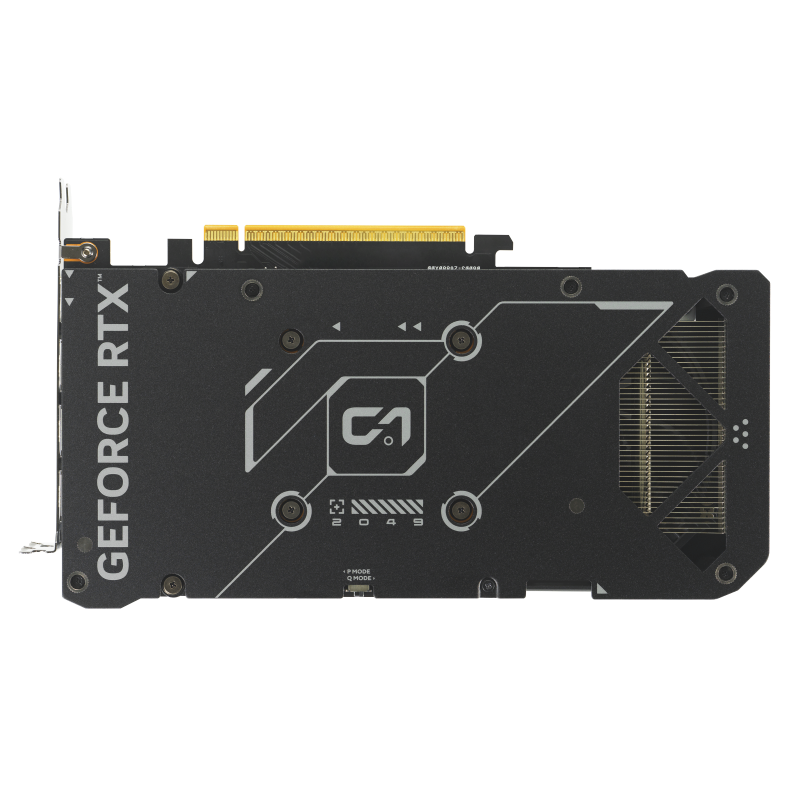

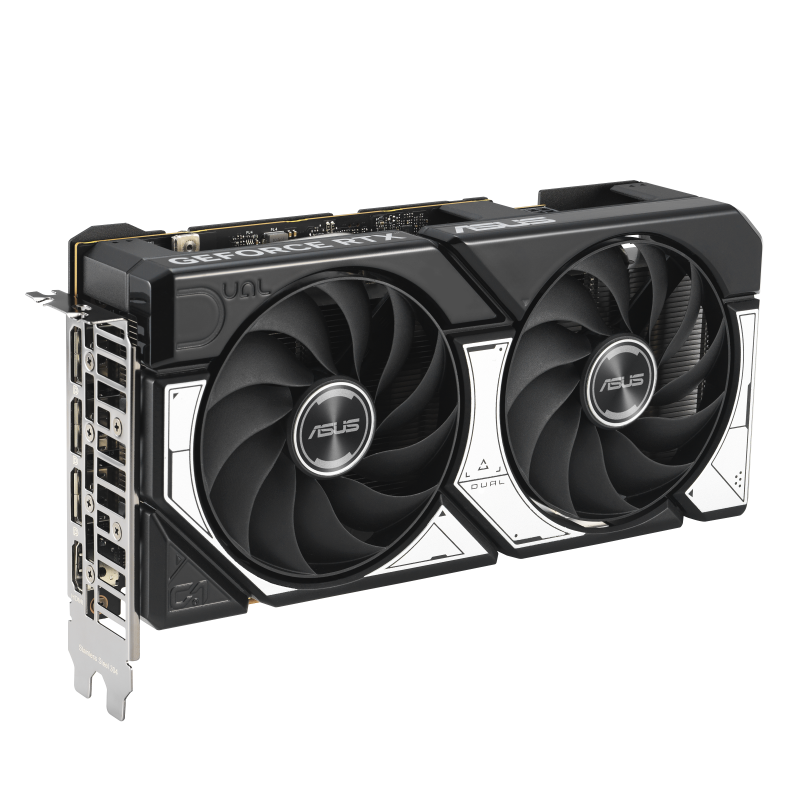

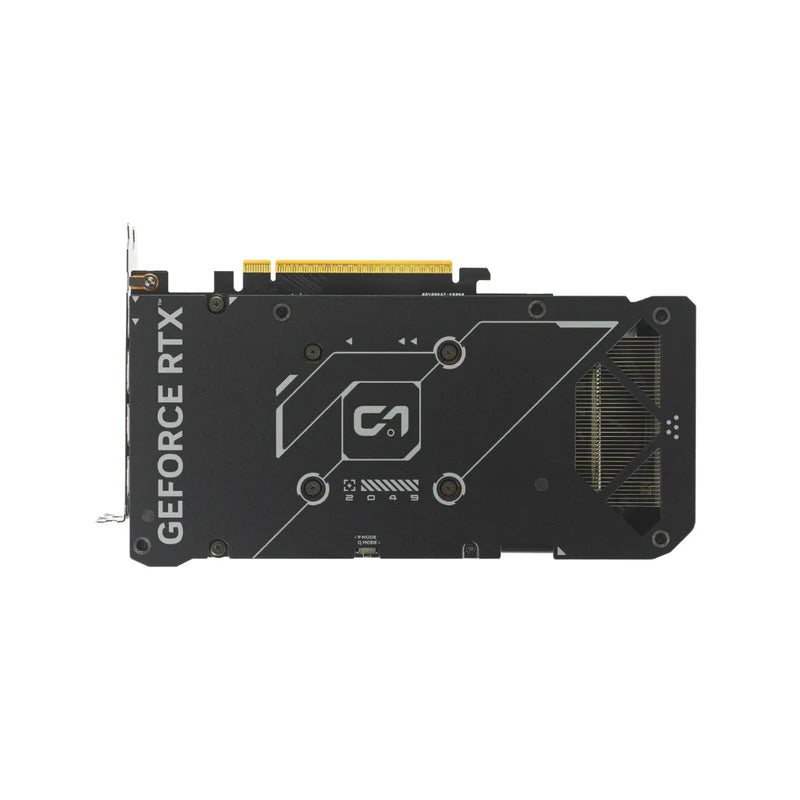

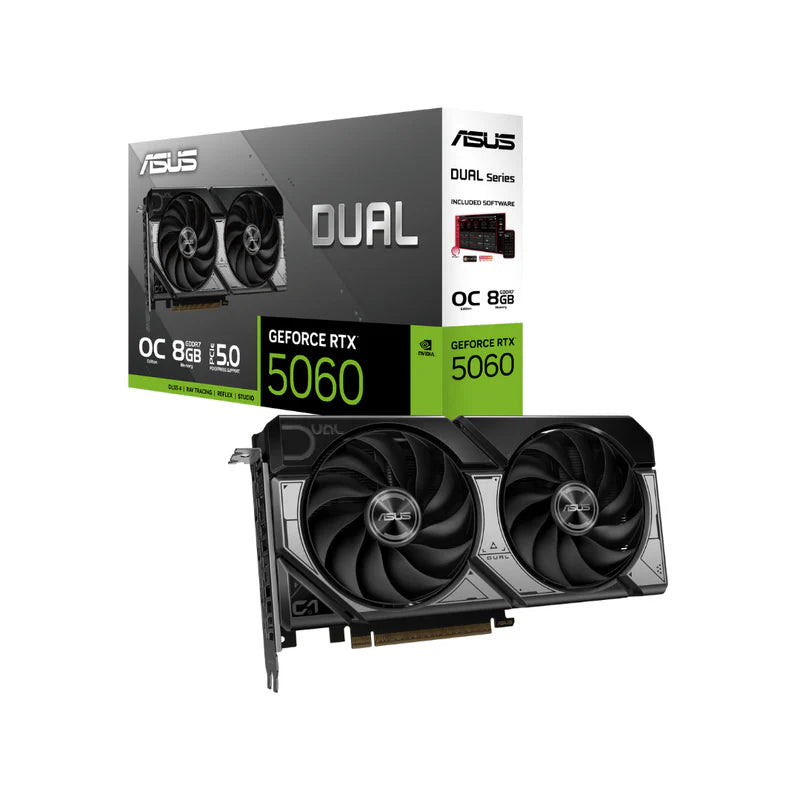

ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition

• Model: ASUS Dual GeForce RTX™ 5060 8GB GDDR7 OC Edition
• GPU Architecture: NVIDIA Blackwell 2.0 – GB206-250-A1
• CUDA Cores: 3840
• Ray Tracing Cores: 4th Gen RT Cores (×30)
• Tensor Cores: 5th Gen Tensor Cores (×120)
• Base Clock: 2280 MHz
• Boost Clock: 2535 MHz (OC Mode)
• Memory: 8GB GDDR7
• Memory Speed: 28 Gbps
• Memory Interface: 128-bit
• Memory Bandwidth: 448 GB/s
• Bus Interface: PCIe 5.0 x8
• Max Resolution: 7680 × 4320

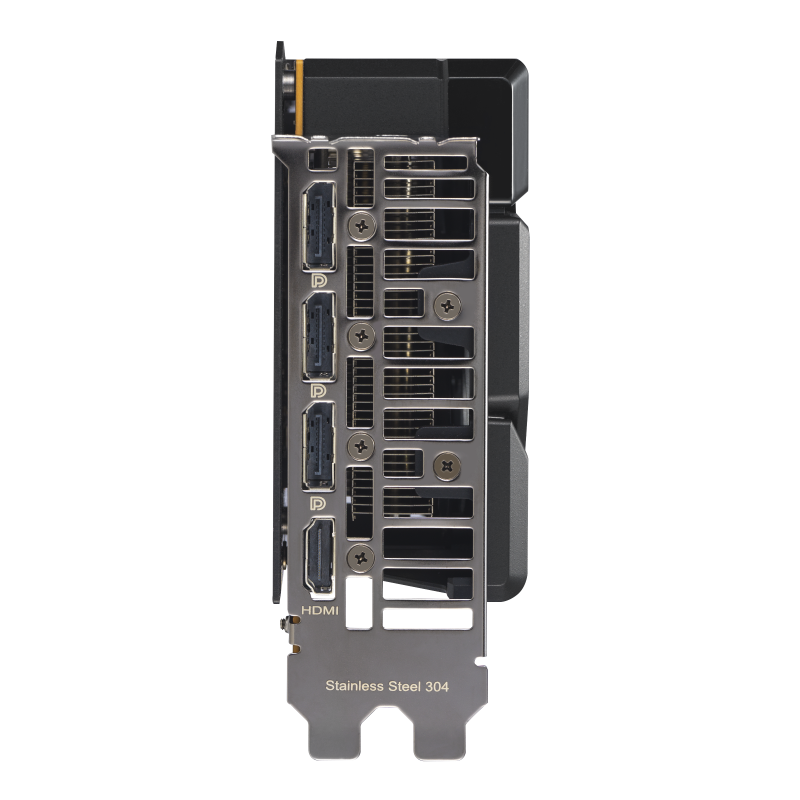

• Display Outputs:
– 1 × HDMI 2.1b
– 3 × DisplayPort 2.1b
• DirectX / OpenGL / Vulkan:
– DirectX 12 Ultimate
– OpenGL 4.6
– Vulkan 1.4
• NVENC / NVDEC: 9th Gen / 6th Gen

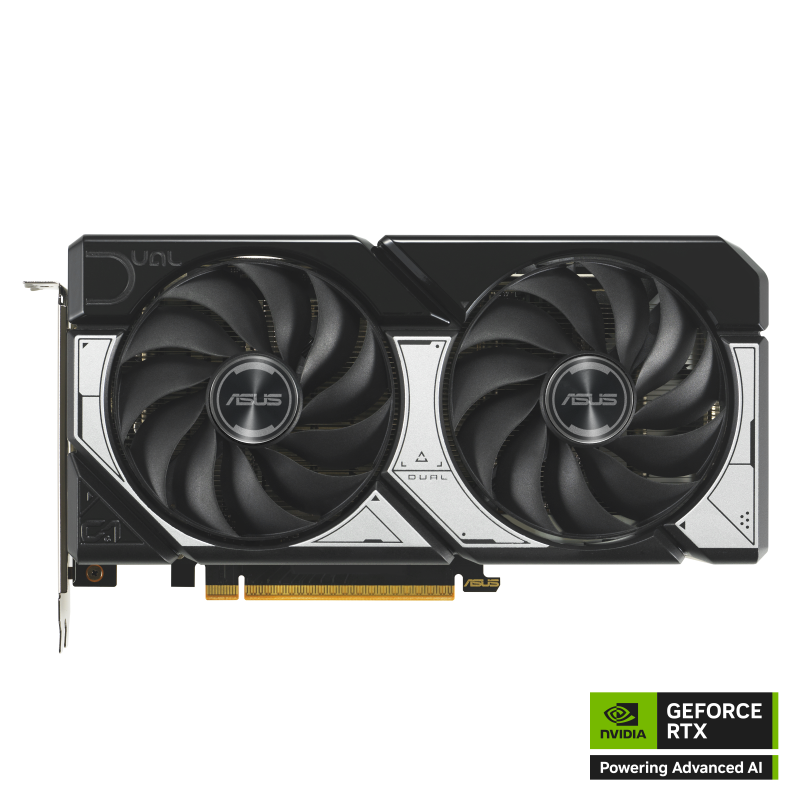

• Cooling: Dual Axial-tech fans with 0dB technology
• Slot Design: 2.5-slot
• Dimensions: 228 × 123 × 50 mm

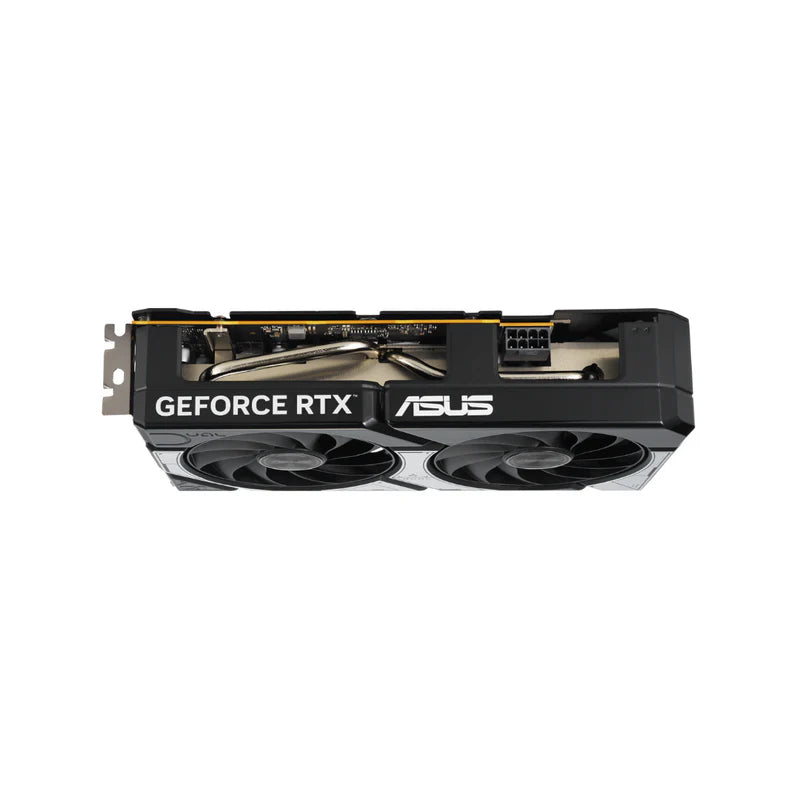

• Power Connector: 1 × 8-pin
• TDP: 145W
• Recommended PSU: 550W
• Software: ASUS GPU Tweak III, MuseTree, GeForce Game Ready & Studio Drivers
