CUDY BE3600 Gigabit Wi-Fi 7 Router

A dual-band WiFi 7 router with an aggregate of 3.6 Gbps speed and five Gigabit ports, catering to gaming and entertainment scenarios.

•  Broadcom 2 GHz Quad-Core CPU
•  4-Stream Dual-Band Wi-Fi 7
•  2882 Mb

  Model Version	WR3600 1.0
  CPU	CPU Details	2.0 GHz Quad-Core, ARM Cortex-A7
  Memory/Storage	Flash/ROM	128 MB (1 Gbit) NAND
  	DDR/RAM	512 MB (4 Gbit) DDR3L
  Wireless	5 GHz Wi-Fi Speed	2882 Mbps
  	2.4 GHz Wi-Fi Speed	688 Mbps
  	5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
  	2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
  	Wi-Fi Antennas	4× Fixed
  	5 GHz Antenna Gain Max	5.5dBi
  	2.4 GHz Antenna Gain Max	5.4dBi
  	FEM or PA/LNA	5 GHz: 2× External 2.4 GHz: 2× Internal
  	Beamforming	True
  	Range Performance	Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
  	Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')

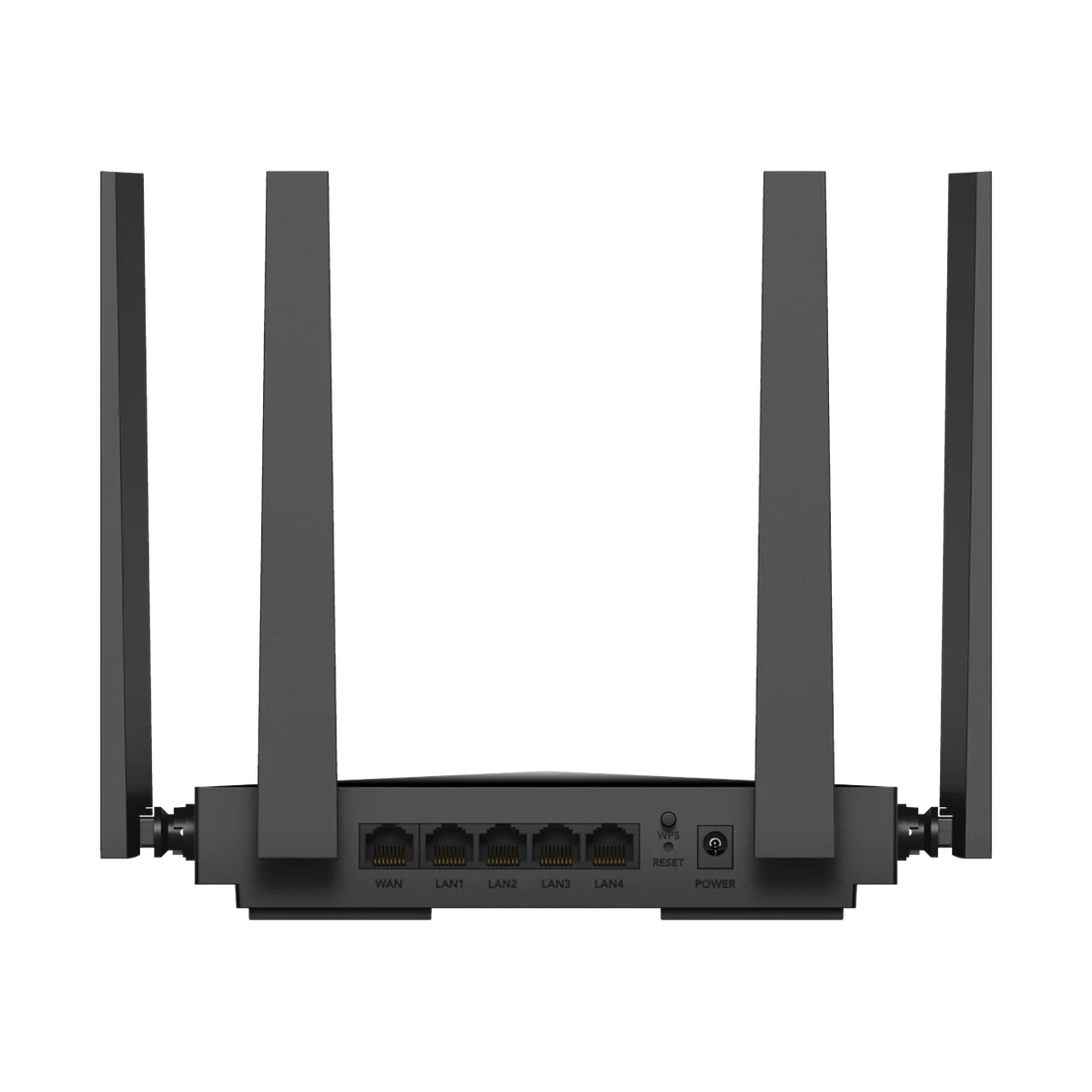

  Interfaces	Gigabit RJ45 Ports	5
  	Ethernet Notes	1× WAN port, the rest are LAN ports
  	LED	Power Internet WAN LAN 2.4 GHz Wi-Fi 5 GHz Wi-Fi
  	Physical Buttons	WPS Button Reset Button
  	Power Input	DC Jack
  Power	Power Methods	DC
  	DC Input	12V 1A
  	Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
  	Max Power Consumption (W)	9W
  Reliability	Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
  Certifications	FCC, CE
  Mechanical	Installation	Desktop Wall-mount
  	Dimension	Device: 183.3×109×38 mm 7.22×4.29×1.5 inches Each Antenna: 175 mm 6.89 inches
  	Product Weight	333.5 g (11.76 oz.)

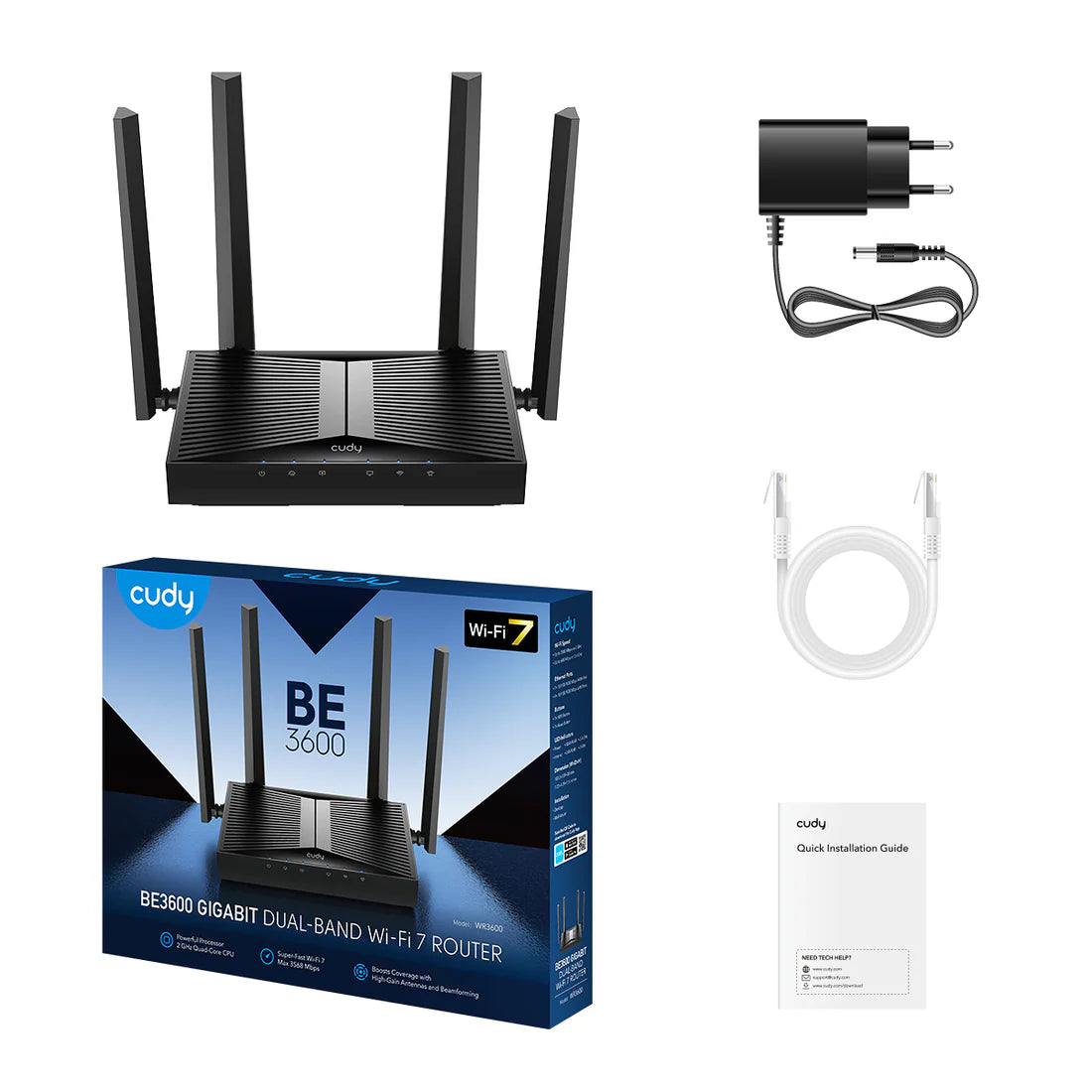

  Package Content	WR3600 Power Adapter Ethernet Cable Installation Guide
  Ordering Information	Retail Package Weight	ZH: 725.0 g (25.57 oz.)
  	Retail Package Dimension	330×256×60 mm 12.99×10.08×2.36 inches
  	Units per Carton	10
  	Carton Dimension	52.8×31.7×34.7 cm 20.79×12.48×13.66 inches
  	Carton Gross Weight	ZH: 8.1 kg (17.86 lbs)
  	Carton Net Weight	ZH: 7.3 kg (16.09 lbs)

  ps + 688 Mbps Wi-Fi ¹
•  5× Gigabit Ethernet Ports
•  Covers 130 m² (1,400 ft²) ²
•  VPN Server and Client

•  Cudy App, Cloud Control
